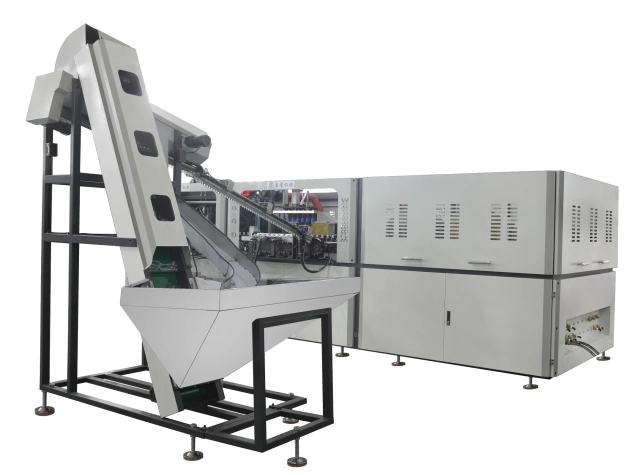

SEGS Equidistant Automatic PET Bottle Blowing Machine
The Stable SEGS Series is an equidistant automatic PET bottle blowing machine range for small, medium and large-volume PET bottle production. The series includes configurations for bottles up to 600ml, plus dedicated 2L, 10L and 20L models.
Why Choose the SEGS Series
Drawer-type mold change supports efficient mold replacement.
Automatic lubrication reduces routine manual work.
Optimized heating helps make effective use of heat energy.
Servo drive supports stable, efficient operation.
An optional high-pressure air recovery system can help reduce compressed-air consumption.
Model Selection and Theoretical Output
SEGS-4: bottles up to 600ml, 4 cavities, theoretical output 6,000 BPH.
SEGS-4 (2L): maximum 2L, 4 cavities, theoretical output 5,000 BPH.
SEGS-6: bottles up to 600ml, 6 cavities, theoretical output 9,000 BPH.
SEGS-9: bottles up to 600ml, 9 cavities, theoretical output 12,000 BPH.
SEGS-2 (10L): maximum 10L, 2 cavities, theoretical output 1,200 BPH.
SEGS-1 (20L): maximum 20L, 1 cavity, theoretical output 550 BPH.
SEGS-2 (20L): maximum 20L, 2 cavities, theoretical output 1,100 BPH.
All output figures are theoretical values based on a 500ml water bottle. Final production capacity depends on the preform, bottle design, volume and selected configuration.
Applications
The SEGS Series can be configured for PET packaging used in bottled water, beverages, juice, tea, edible oil and daily chemical products. Large-volume configurations are available for 10L and 20L PET containers.
How to Select a Machine
Send your bottle drawing or sample, bottle volume, neck finish, target output, local voltage and utility requirements. Our team will recommend the appropriate model, cavity configuration and auxiliary equipment.
FAQ
Can SEGS produce bottles below 600ml?
Yes. For SEGS-4, SEGS-6 and SEGS-9, 600ml is the maximum bottle volume. Suitable smaller bottles are confirmed by the preform, mold and bottle design.
Can SEGS produce 20L PET bottles?
Yes. Dedicated SEGS-1 (20L) and SEGS-2 (20L) configurations are available.
How is BPH calculated?
Theoretical BPH figures are based on a 500ml water bottle. Actual output varies with bottle design, preform, volume and production conditions.
Request a Configuration
Send your bottle requirements and target output to receive a matched SEGS machine configuration and quotation.
